Programacion

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
using System.Windows.Forms;

namespace Semaforo_UART_01
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

SolidBrush brocha1, brocha2, brocha3;
        byte cnt = 1;
        byte[] buffer = { 36 };

private void Form1_Load(object sender, EventArgs e)
        {
            serialPort1.Open();
            serialPort1.Write(buffer, 0, 1);
        }

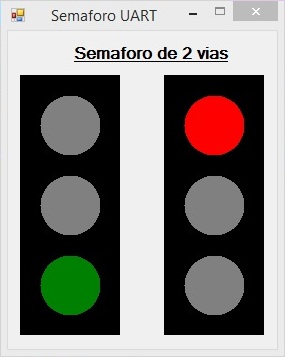

private void panel1_Paint(object sender, PaintEventArgs e)
        {
            if (cnt >= 1 && cnt <= 5)
                brocha3 = new SolidBrush(Color.Green);
            else
                brocha3 = new SolidBrush(Color.Gray);

if (cnt >= 6 && cnt <= 7)
                brocha2 = new SolidBrush(Color.Yellow);
            else
                brocha2 = new SolidBrush(Color.Gray);

if (cnt >= 8)
                brocha1 = new SolidBrush(Color.Red);
            else
                brocha1 = new SolidBrush(Color.Gray);

Graphics luces = e.Graphics;
            luces.FillEllipse(brocha1, 20, 20, 60, 60);
            luces.FillEllipse(brocha2, 20, 100, 60, 60);
            luces.FillEllipse(brocha3, 20, 180, 60, 60);
        }

private void timer1_Tick(object sender, EventArgs e)
        {
            panel1.Invalidate();
            panel2.Invalidate();

if (cnt >= 1 && cnt <= 4)
                buffer[0] = 36;
            if (cnt >= 5 && cnt <= 6)
                buffer[0] = 34;
            if (cnt >= 7 && cnt <= 11)
                buffer[0] = 129;
            if (cnt >= 12)
                buffer[0] = 65;
            if (cnt == 14)
                buffer[0] = 36;

serialPort1.Write(buffer, 0, 1);
            cnt++;
            if (cnt > 14)
                cnt = 1;
        }

private void panel2_Paint(object sender, PaintEventArgs e)
        {
            if (cnt >= 1 && cnt <= 7)
                brocha1 = new SolidBrush(Color.Red);
            else
                brocha1 = new SolidBrush(Color.Gray);

if (cnt >= 8 && cnt <= 12)
                brocha3 = new SolidBrush(Color.Green);
            else
                brocha3 = new SolidBrush(Color.Gray);

if (cnt >= 13)
                brocha2 = new SolidBrush(Color.Yellow);
            else
                brocha2 = new SolidBrush(Color.Gray);

private void Form1_FormClosing(object sender, FormClosingEventArgs e)
        {
            buffer[0] = 0;
            serialPort1.Write(buffer, 0, 1);
            serialPort1.Close();
        }
    }
}
